WP01SN– Sensor Node
WP01SN– Sensor Node
Categories: Wireless Sensors
Typical Industries:
Brochure
- Oil and Gas
- Fuels and Lubes
- Water and wastewater
- Agriculture
- Chemical Industry
- Pairs with any industry standard wired sensor to produce a wireless sensor option
- Digital Inputs/Digital Outputs
- Digital Counter
Brochure
Product Descriptions:

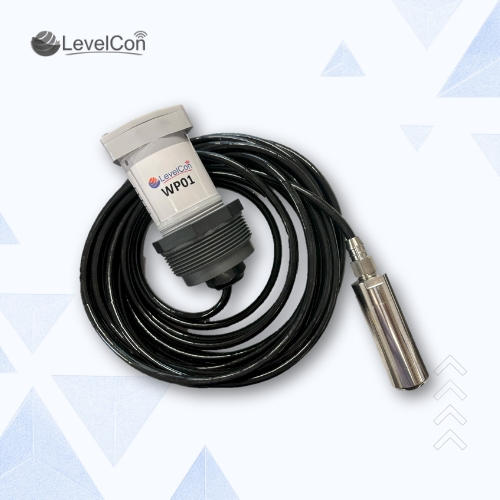

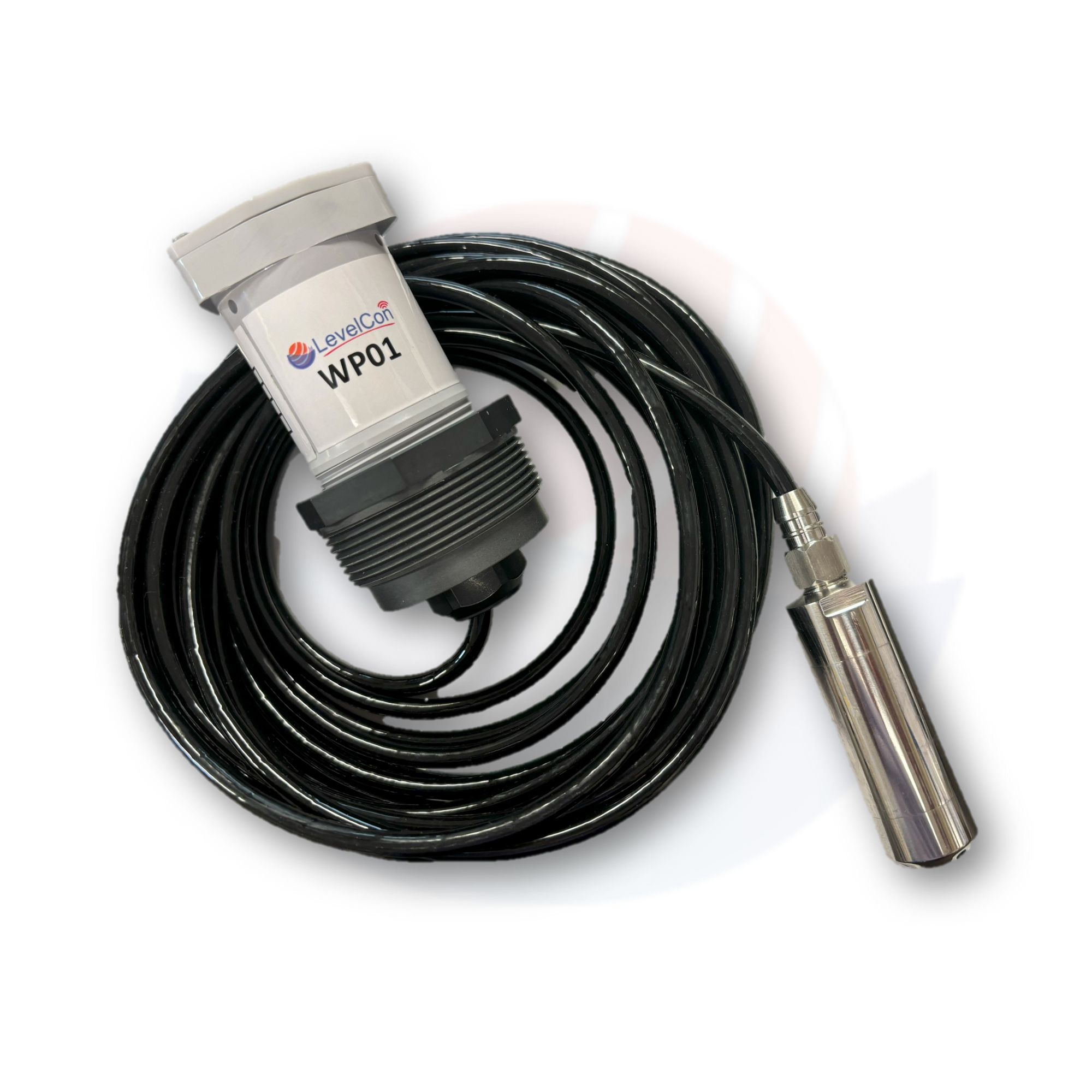

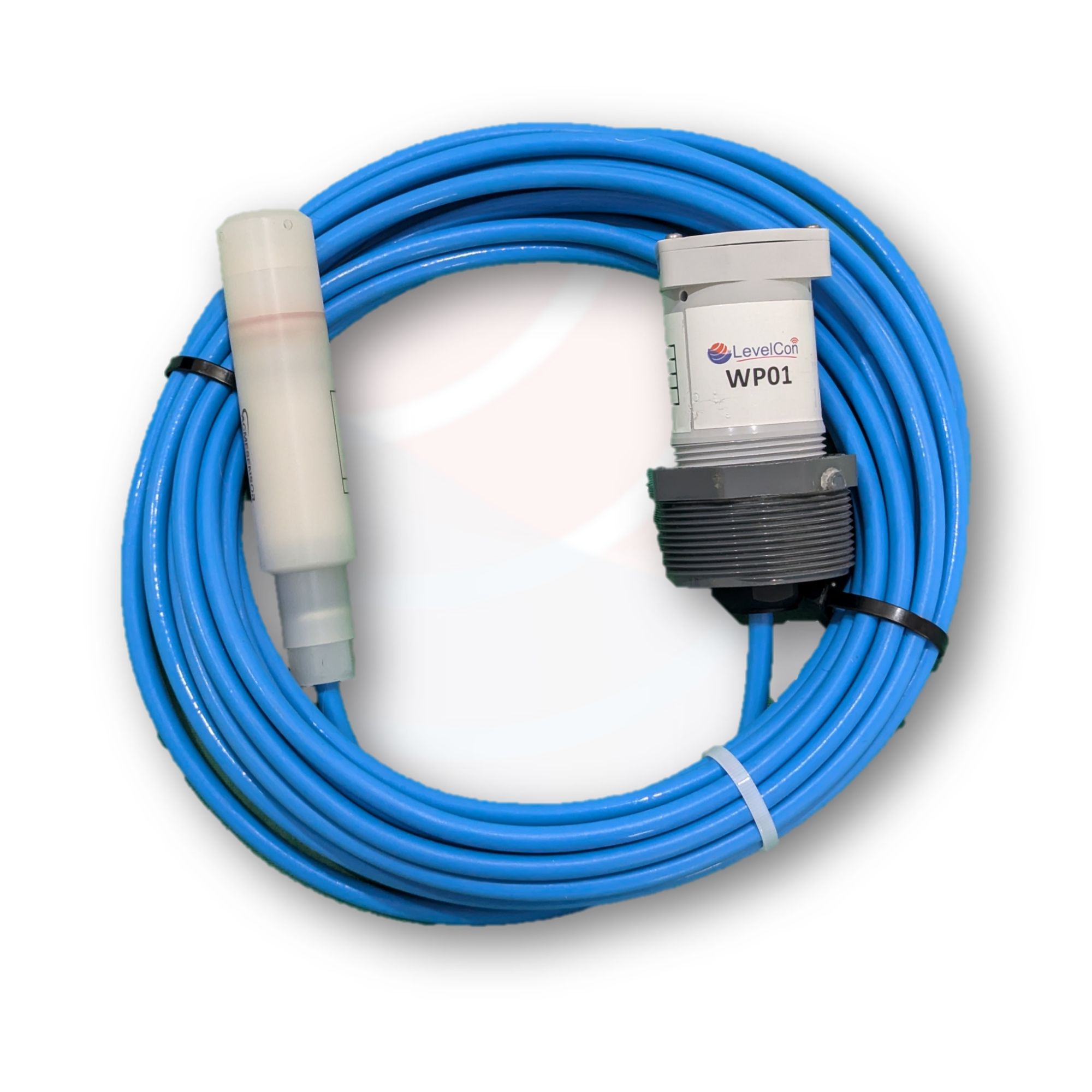

Unlock the full potential of your sensor network with the WP01A. This flexible wireless sensor node interfaces with any wired sensor, supports digital triggers and pulse counting, and runs on two standard AA batteries for extended deployment. Acting as an independent wireless repeater, it expands your LevelCon network effortlessly—giving you robust, reliable, and scalable wireless monitoring wherever you need it.
Product Information
| Product Dimensions: 87mm H, 46mm Diam. + cable gland, bushing or sensor | Operating Temp: 40C to 65C, Storage -50C to 80C | Optional: -40C->85C | |
| Model Number: | |
| Wireless Communication: | Wireless Mesh Communication: Wireless comms to a LevelCon |
| Sensing Technology: | Dependent on the paired sensor technology |
| Operating Voltage: | 3.6 VDC |
| Operating Signal: | I2C |
| Output Signal: | DI/DO, 3.3v-5v sensor input, NO/NC counter, Repeater |
| Enclosure Material: |
|
| Range: | Paired sensor Dependent |
| Battery Size: | 2x AA (L91) Energizer Ultimate Lithium |
| Tank Connection: | 1.5” MNPT to 1.5” to 2” tank bushing or magnetic clip |
| CPU: | NA |
| Country of Origin | More than 50% assembled in the USA |
Warranty & Support
All our products come with a 1-year limited warranty and lifetime technical support. For any queries or issues, contact our support team.
